DS8500 Wireless 2D RFID Barcode Scanner
HomeStore

DS8500 Wireless 2D RFID Barcode Scanner

DS8500 Wireless 2D RFID Barcode Scanner

Select Frequency
From $55.65

Original: $159.00

-65%
DS8500 Wireless 2D RFID Barcode Scanner

$159.00

$55.65

The Story

NETUM DS8500 Hybrid RFID Imager is the future of the data capture industry. Under programmatic control, the reader seamlessly supports the widest variety of UHF RFID tags and bar code labels, as well as standard and most proprietary card formats; suitable for hospitality, retail, and logistic industry settings via Bluetooth low-energy connection. Compatible with Windows, Mac OS, iOS and Android. the DS8500 makes RFID and bar code reading simple.

With the DS8500 Series, you can give shoppers the checkout experience they expect — short lines, a speedy transaction and attentive service. A one-of-a-kind hybrid design provides maximum flexibility, offering both handheld and hands-free scanning.

You get NETUM’s industry-leading scanning technology, seamless switching between modes and superior ease of use, along with a wide range of innovative features that boost productivity. An RFID model combines a barcode scanner and RFID reader to extend the benefits of RFID to your point of sale.

Supported 1D Symbologies
UPC / EAN ( UPCA / UPCE / EAN-8 / EAN-13, ISBN ( Bookland ), Code 39 , Code 32 ( Italian Pharmacode ), Code 128, Code 93, Codabar, Interleaved 2 of 5,Standard 2 of 5,lndustrial 2 of 5, Matrix 2 of 5 ( Japanese ), Code 11, Telepen, Pharmacode, Chinese post code, MSI Plessey, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Telepen.


Supported 2D Symbologies
QR Code, Micro QR Code Data Matrix MaxiCode, Aztec, PDF417, MicroPDF417, PostNet, PLANET, Australia, Royal Post, CODABLOC F Composite Codes (CC-A, CC-B, CC-C)

UHF RFID Performance
➢ Support EPC C1Gen2 V1.2/ISO18000-6C;
➢ Output power range 8-27dBm, with ceramic antenna identification tag, the distance can reach more than 1 meter superior;
➢ Suitable for clothing, retail, industrial automation and other industries;

UHF RFID Tags Supported:
Peak current: 500 mA Maximum power output @5V
Standby current ≤1 mA EN pin low level
Frequency range US: 902 - 928 MHz, EU: 865 - 868 MHz, JP: 916 - 923 MHz
Default operating frequency Frequency hopping MHz Frequency interval 250KHz
Frequency hopping speed ≤2 s
Rated power 27 dBm
Step interval 1 dB 8~27dBm software adjustable
Communication protocol UART TTL level
Maximum reading distance 1m 2dBi ceramic antenna

System Requirements:
Mobile device: iOS, Android
PC device: Windows 10/8.1/8/7/Vista/XP/CE, Mac OS X, Linux
DS8500 Wireless 2D RFID Barcode Scanner - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

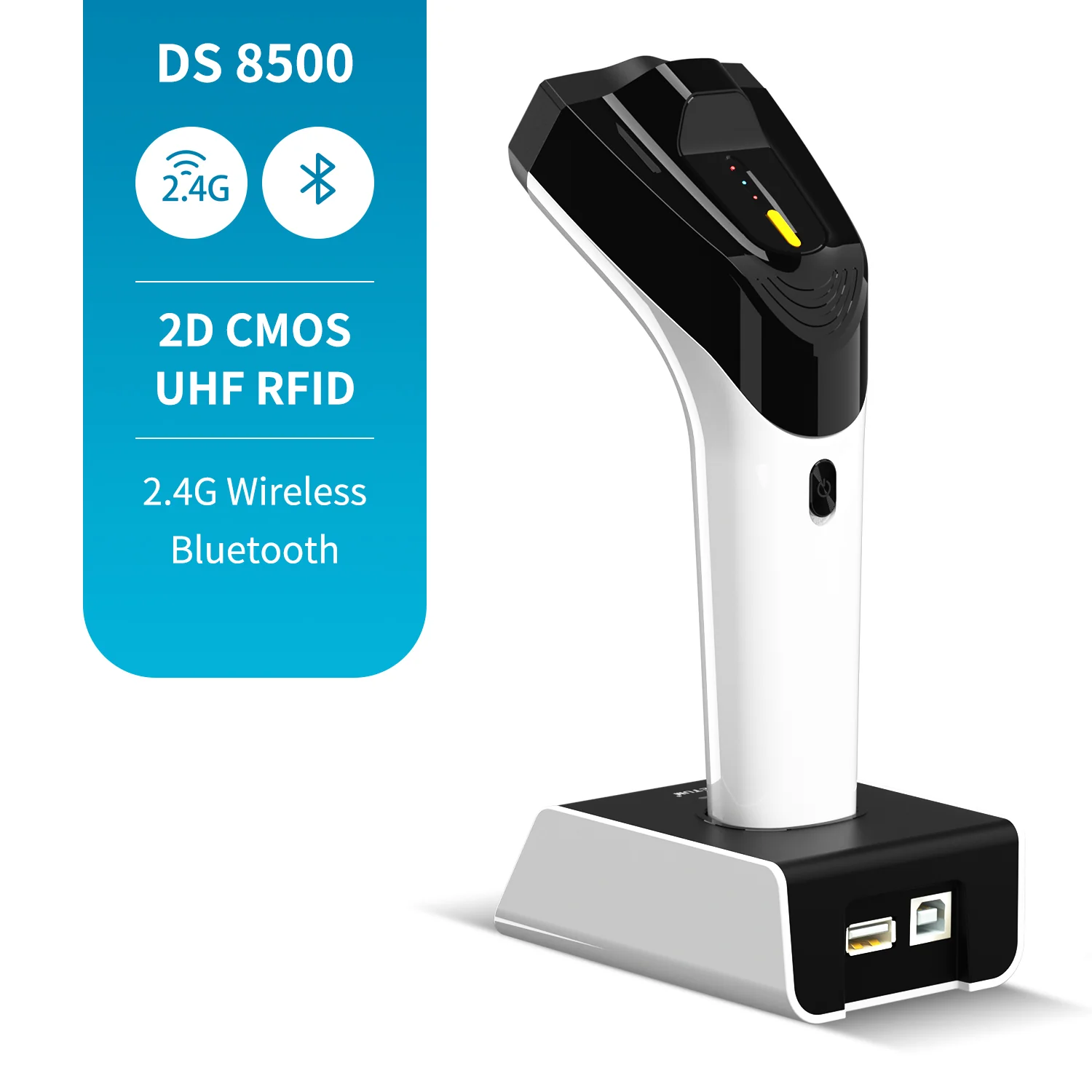

DS8500 Wireless 2D RFID Barcode Scanner - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

NETUM DS8500 Hybrid RFID Imager is the future of the data capture industry. Under programmatic control, the reader seamlessly supports the widest variety of UHF RFID tags and bar code labels, as well as standard and most proprietary card formats; suitable for hospitality, retail, and logistic industry settings via Bluetooth low-energy connection. Compatible with Windows, Mac OS, iOS and Android. the DS8500 makes RFID and bar code reading simple.

With the DS8500 Series, you can give shoppers the checkout experience they expect — short lines, a speedy transaction and attentive service. A one-of-a-kind hybrid design provides maximum flexibility, offering both handheld and hands-free scanning.

You get NETUM’s industry-leading scanning technology, seamless switching between modes and superior ease of use, along with a wide range of innovative features that boost productivity. An RFID model combines a barcode scanner and RFID reader to extend the benefits of RFID to your point of sale.

Supported 1D Symbologies
UPC / EAN ( UPCA / UPCE / EAN-8 / EAN-13, ISBN ( Bookland ), Code 39 , Code 32 ( Italian Pharmacode ), Code 128, Code 93, Codabar, Interleaved 2 of 5,Standard 2 of 5,lndustrial 2 of 5, Matrix 2 of 5 ( Japanese ), Code 11, Telepen, Pharmacode, Chinese post code, MSI Plessey, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Telepen.


Supported 2D Symbologies
QR Code, Micro QR Code Data Matrix MaxiCode, Aztec, PDF417, MicroPDF417, PostNet, PLANET, Australia, Royal Post, CODABLOC F Composite Codes (CC-A, CC-B, CC-C)

UHF RFID Performance
➢ Support EPC C1Gen2 V1.2/ISO18000-6C;
➢ Output power range 8-27dBm, with ceramic antenna identification tag, the distance can reach more than 1 meter superior;
➢ Suitable for clothing, retail, industrial automation and other industries;

UHF RFID Tags Supported:
Peak current: 500 mA Maximum power output @5V
Standby current ≤1 mA EN pin low level
Frequency range US: 902 - 928 MHz, EU: 865 - 868 MHz, JP: 916 - 923 MHz
Default operating frequency Frequency hopping MHz Frequency interval 250KHz
Frequency hopping speed ≤2 s
Rated power 27 dBm
Step interval 1 dB 8~27dBm software adjustable
Communication protocol UART TTL level
Maximum reading distance 1m 2dBi ceramic antenna

System Requirements:
Mobile device: iOS, Android
PC device: Windows 10/8.1/8/7/Vista/XP/CE, Mac OS X, Linux
